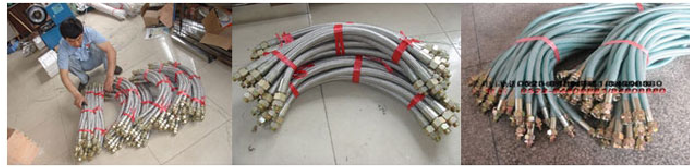

防爆挠性连接软管

XWD-DIP 系列粉尘防爆扰性连接管XWD-DIP Type Dust Explosion-proof Flexible connecting Pip(Dip) 使用范围:

1、可燃性粉尘环境危险场所:21区、22区。

2、导电性或非导电性粉尘环境。

3、温度组别:T1-T6。

Application:

1、Dangerous place of flammable dust21&22.

2、Flectric conductirity and the not electric conductirity or dust atruorphere.

3、Temperatures classfication: T1-T6.

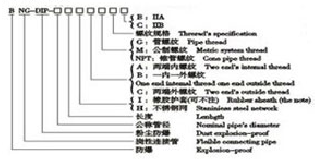

型号含义:
产品特点:

1、具有耐燃、耐腐蚀、耐水、耐老化、扰性良好、结构牢固、工作可靠等优点。

2、特殊规格可根据用户要求特制。

Features:

1、Possessing the advantages of fire retardancy corrosion-preefing fleribility and firm atructure, ect.

2、Can be customired according to use's requirments.

主要技术参数:
    型号 管通径 接头管螺纹 长度 最小弯曲半径 防爆标志
    XWD-DIP-80×700G1/2 15 1/2 700 80 DIP DT T12
    XWD-DIP-80×1000G1/2 15 1/2 1000 80
    XWD-DIP-80×700G3/4 20 3/4 700 110
    XWD-DIP-80×1000G3/4 20 3/4 1000 110
    XWD-DIP-80×700G1 25 1 700 145
    XWD-DIP-80×1000G1 25 1 1000 145
    XWD-DIP-80×700G11/4 32 11/4 700 180
    XWD-DIP-80×1000G11/4 32 11/4 1000 180
    XWD-DIP-80×700G11/2 40 11/2 700 210
    XWD-DIP-80×1000G11/2 40 11/2 1000 210
    XWD-DIP-80×700G2 50 2 700 250
    XWD-DIP-80×1000G2 50 2 1000 250
    XWD-DIP-80×200G2 50 2 1200 250
    XWD-DIP-80×1400G2 50 2 1400 250
    XWD-DIP-80×700G21/2 70 21/2 700 350
    XWD-DIP-80×1000G21/2 70 21/2 1000 350
    XWD-DIP-80×1200G21/2 70 21/2 1200 350
    XWD-DIP-80×1400G21/2 70 21/2 1400 350
    XWD-DIP-80×700G3 80 3 700 400
    XWD-DIP-80×1000G3 80 3 1000 400
    XWD-DIP-80×1200G3 80 3 1200 400
    XWD-DIP-80×1400G3 80 3 1400 400
